Manufacturer web-site: https://www.fujifilm-x.com/global/products/lenses/xf35mmf14-r/
| Abbreviations | |
|---|
| Super EBC | Multi-layer Super Electron Beam coating is applied to the surfaces of lens elements. This anti-reflection coating increases light transmission, eliminates flare and ghosting, and maintains color consistence among all lens models |
| XF | The lens is designed for Fujifilm APS-C digital mirrorless cameras |
| R | The lens is equipped with aperture ring |
| Main info | |
|---|

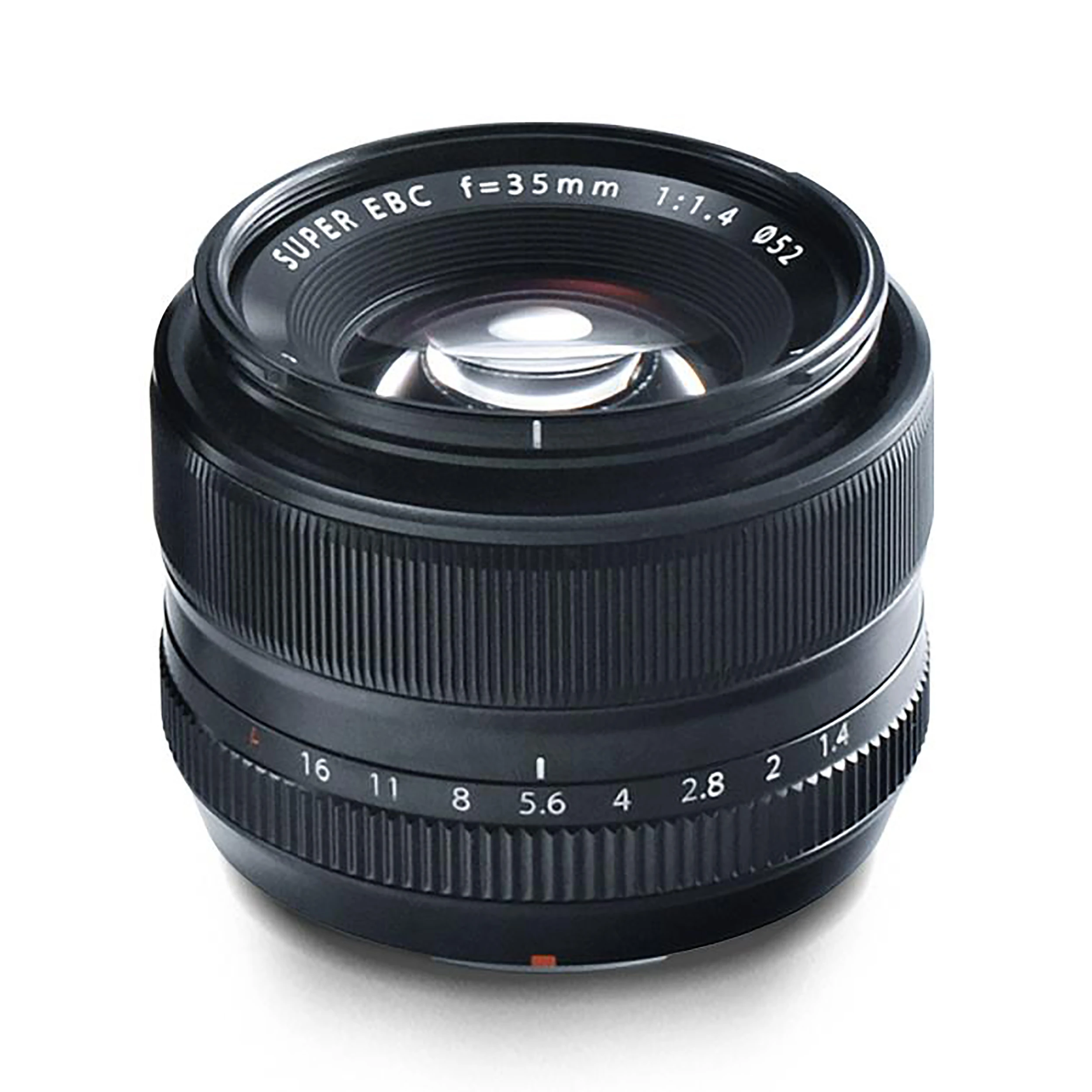

| Original name | Fujifilm Super EBC FUJINON XF 35mm F/1.4 Aspherical R |
| System | Fujifilm X (2012) |
| Class | Fast APS-C-format short telephoto prime lens |
| Optical design | |
|---|
| Focal length | 35mm |
| Speed range | ƒ/1.4 |
| Maximum format | APS-C |
| Mount | Fujifilm X |
| Diagonal angle of view | 44.2° (Fujifilm X APS-C) |

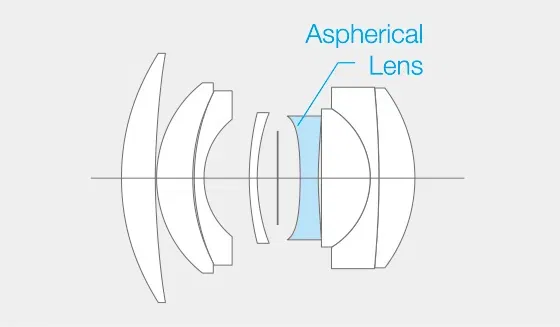

| Lens construction | 8 elements in 6 groups |
| 1 aspherical low dispersion element |
Optical bench
| 35mm comparison | |
|---|
| 35mm equivalent focal length range | 53mm (in terms of field of view) |
| Diaphragm | |
|---|
| Type | Automatic |
| Aperture control | Aperture ring (manual settings + auto exposure setting) |
| Number of blades | 7 (rounded diaphragm opening) |
| Step size | ⅓EV (22 steps) |
| Maximal aperture | ƒ/1.4 |
| Minimal aperture | ƒ/16 |
| Focusing | |
|---|
| Focus range | 0.28m–∞ |
| Maximal magnification | 0.17x |
| Focusing modes | Autofocus, manual focus |
| Manual focus control | Focusing ring |
| Focus mode selector | None; focusing mode is set from the camera |
| Manual focus override in autofocus mode | Determined by the camera |
| Physical characteristics | |
|---|
| Weight | 187g |
| Maximum diameter x Length | ⌀65×50.4mm |
| Accessories | |
|---|
| Filters | Screw-type, 52mm |
| Lens hood | Bayonet-type petal-shaped |
Source of data:
- https://www.fujifilm-x.com/global/products/lenses/xf35mmf14-r/specifications/
